| Item | Type | Max.Processing Dimension | Cutting position | Cutting angle |
| 1 | 。 | Φ120mm *8mm | Straight | 90° |
| 2 | □ | 120mm*120mm*6mm | Straight | 90° |
| 3 | □ | 100mm*200mm | Straight | 90° |
| □ | 180mm*160mm | Straight | 90° | |
| 3 | L | 150mm*60mm*10mm | Straight | 90° |
| 4 | . | Φ50mm | Straight | 90° |
| 5 | - | 45mm*45mm | Straight | 90° |
| No. | Item | Description |
| Model | YT455CNC | |
| 1 | Motor Power | 4kw |
| 2 | Voltage | 380V 50HZ |
| 3 | Max. Feeding Distance | 750mm |
| 5 | Suitable Blade | Φ355~Φ455mm |
| 6 | Rotating Speed | 3200rpm |
| Dimension | 1950x1300x1200mm | |
| Weight | 850kg |

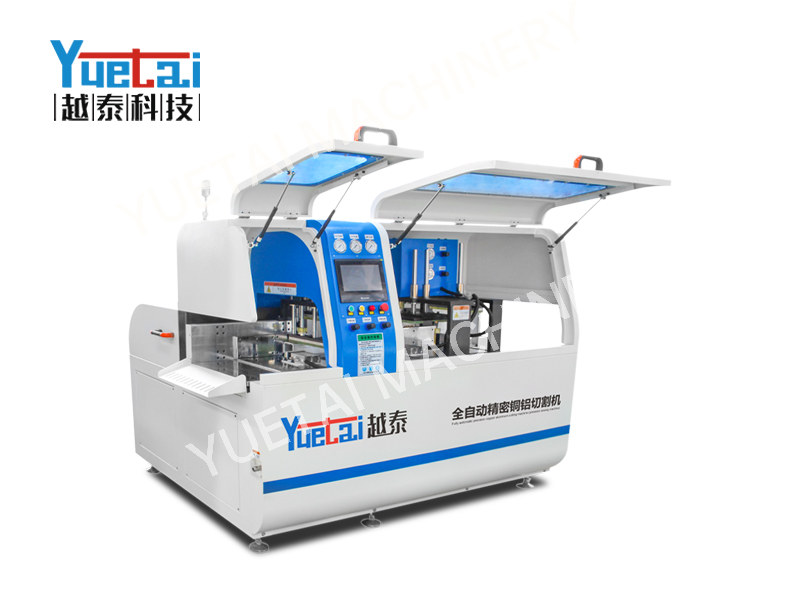

Aluminum Cutting Machine

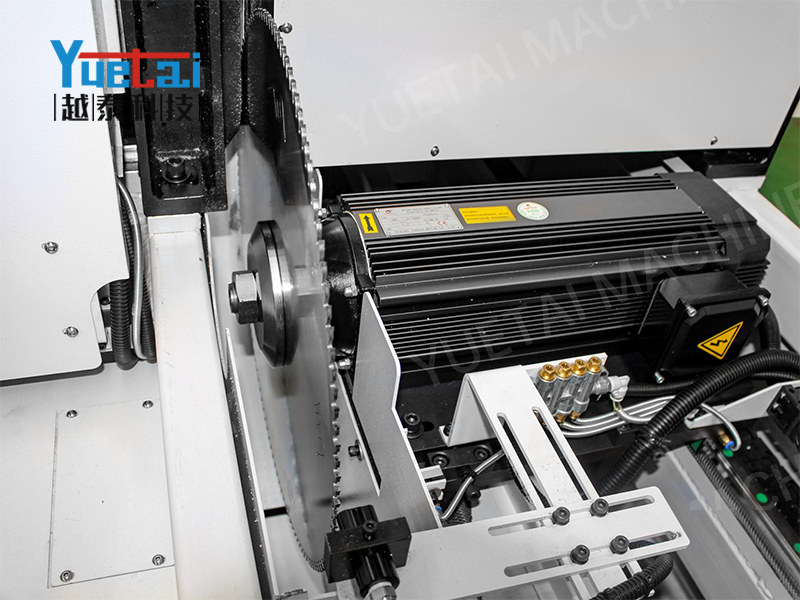

Saw blade rotating positioning at any angle between 45°and 90°
It can cut one piece or bundle cutting at the same time, suitable for mass production
Hidden sawblade goes up and down safely
Aluminum Cutting Machine
Foot switch can control automatic loading and cutting
Automatic lubricating improves service of sawblade and fineness of cutting surface

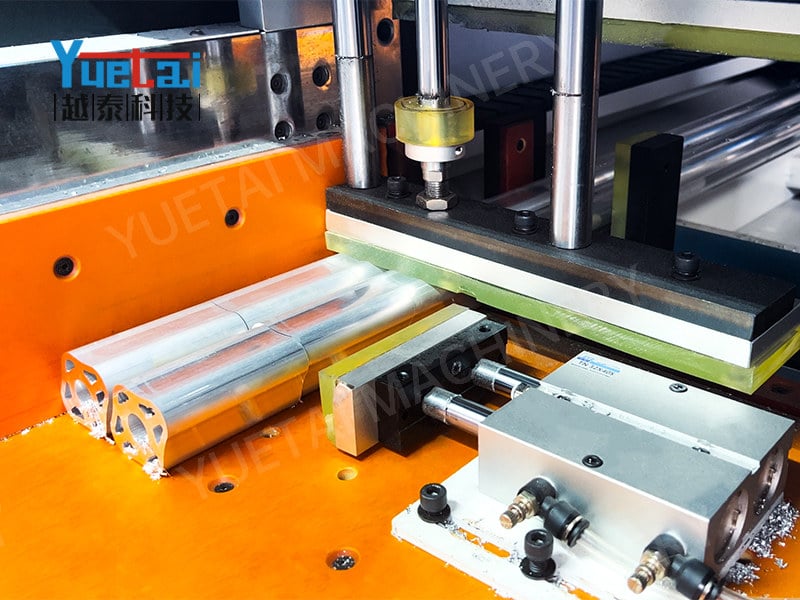

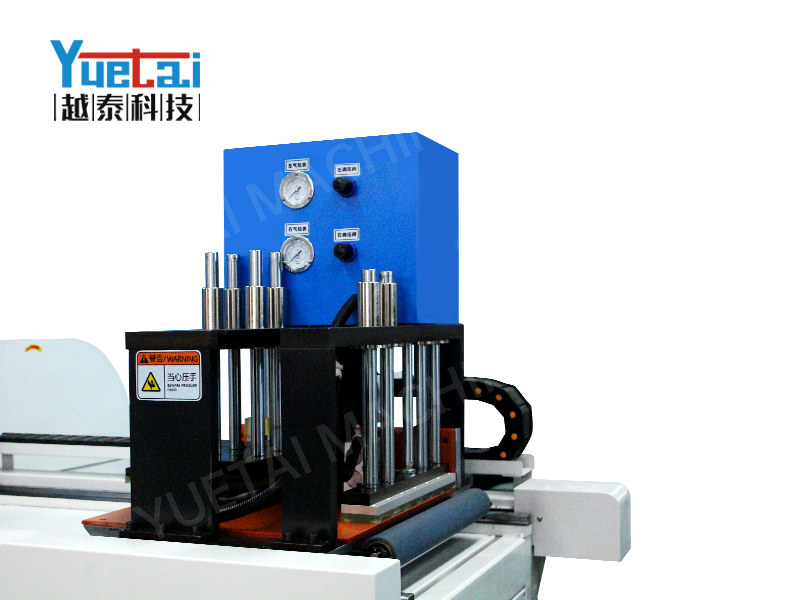

The pneumatic driving system is used in profiles clamping and cutting
Aluminum Cutting Machine
One head or double heads are available by different machine capacity request
Double sawblades cut simultaneously

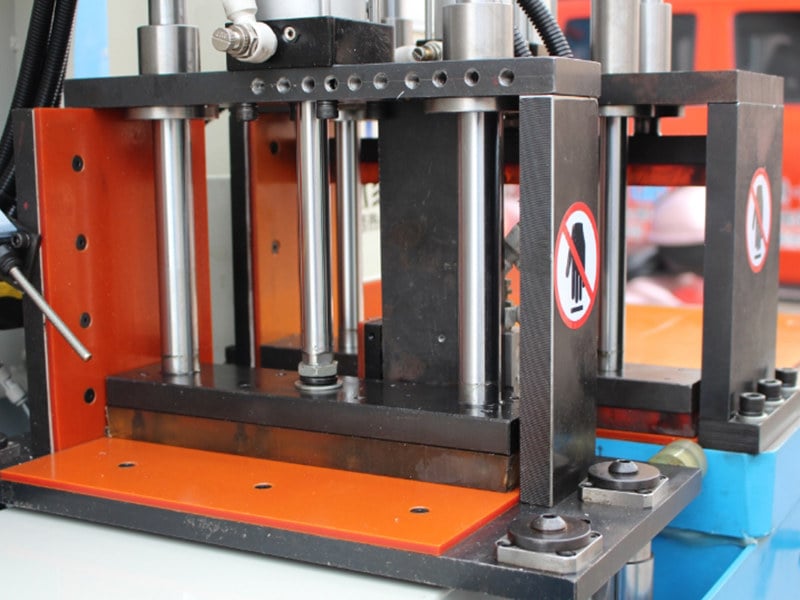

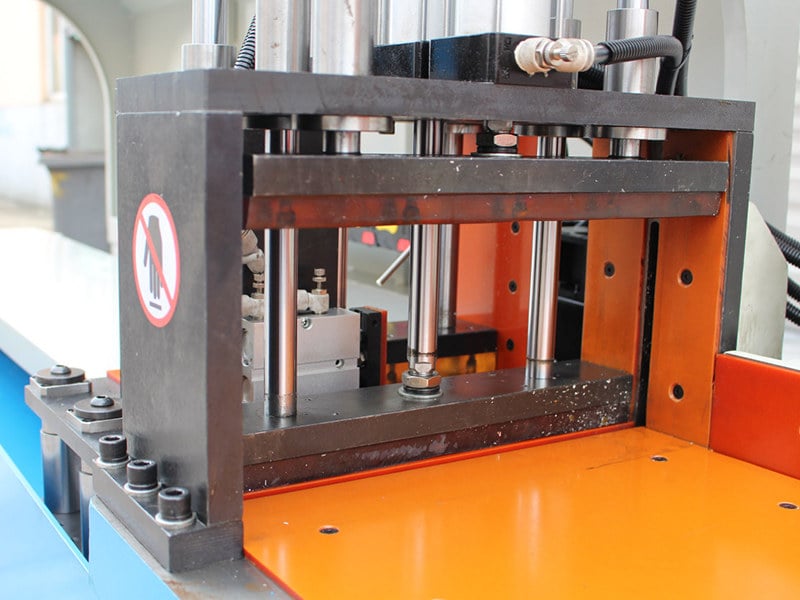

Pneumatically operated workpiece clamping
Aluminum Cutting Machine
Automatic oil lubrication while in cutting
It saves 2/3 of time than the conventional cutting equipments.
Fully guarded sawblade allows safe loading and unloading of workpieces
Single or multiple workpieces can be cut at a time, making this unit ideal for small lot or high production demands.
