| No. | Item | Description |
| 1 | Model | YT 50 |
| Processing capacity | Φ12-80mm | |
| 2 | Suitable material | Steel pipe, iron pipe, aluminum pipe, copper pipe, Stainless steel, bar etc |
| 3 | Working length | 200-600mm |

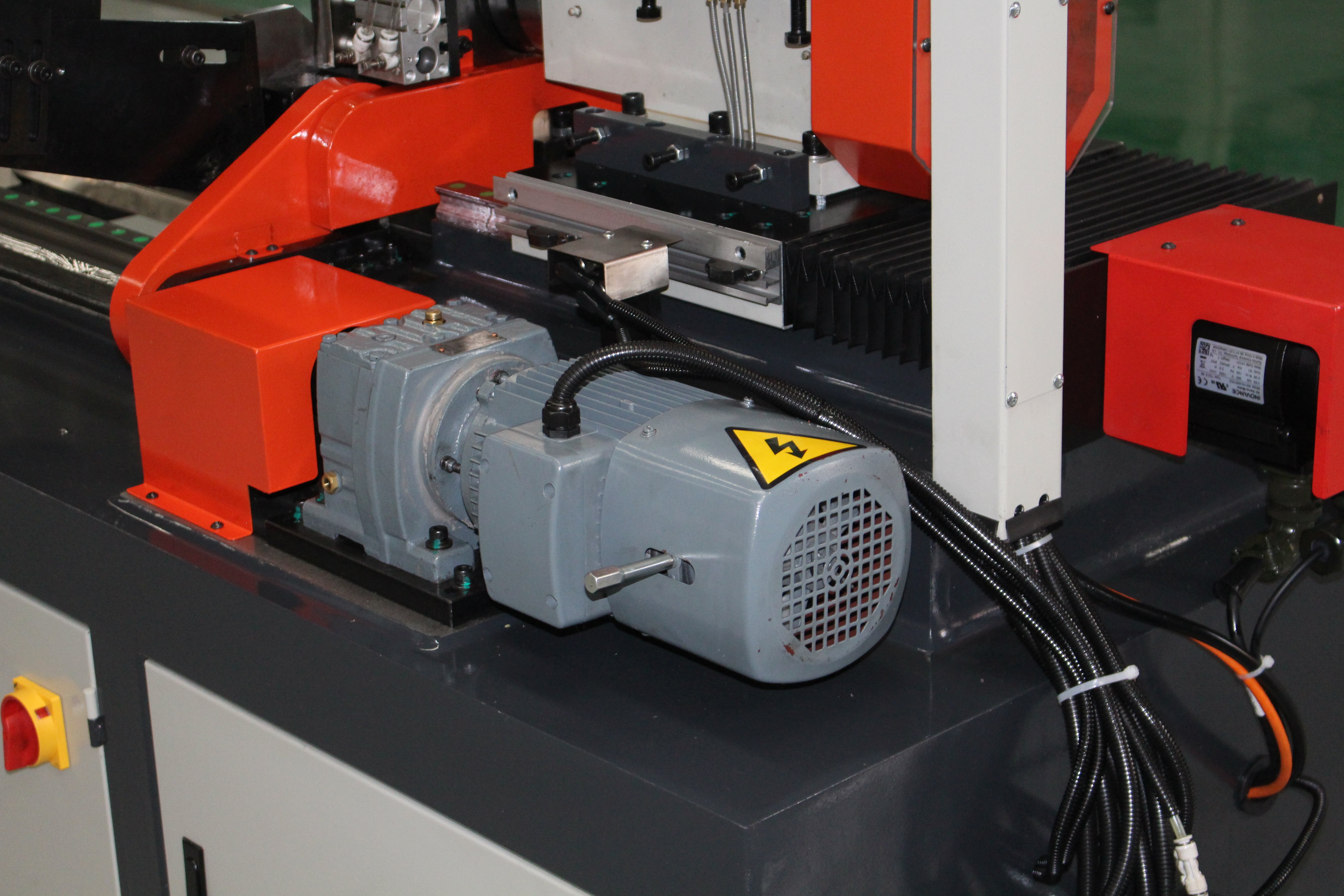

| 4 | Main motor power | 3HP X 6P |
| Compressed air | 6-9kgs/cm2, 120ml/min | |
| 5 | Machine weight | 800kg |
| 6 | Working precision | ±0.1mm |
| 7 | Machine dimension | 1300x900x1500mm |

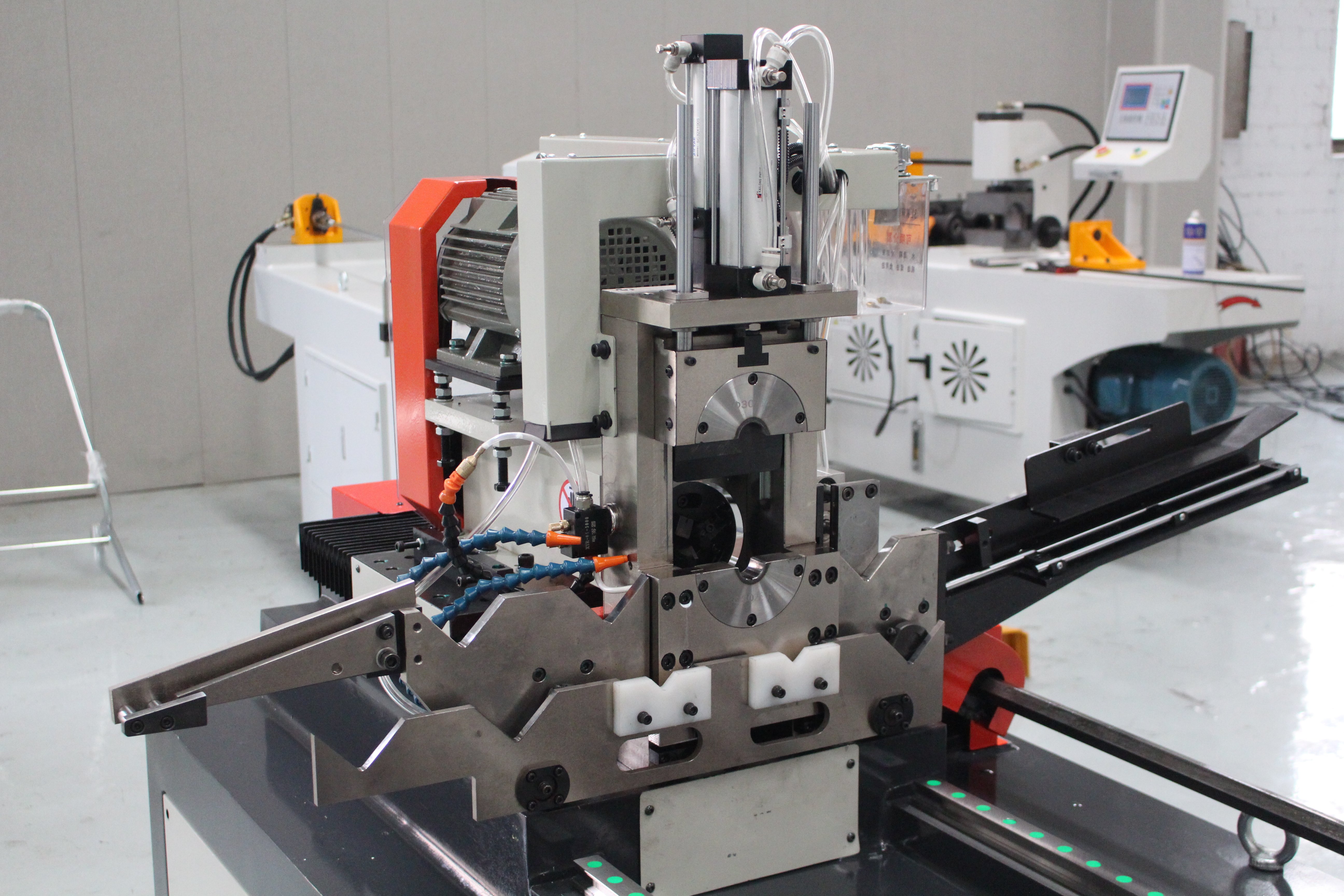

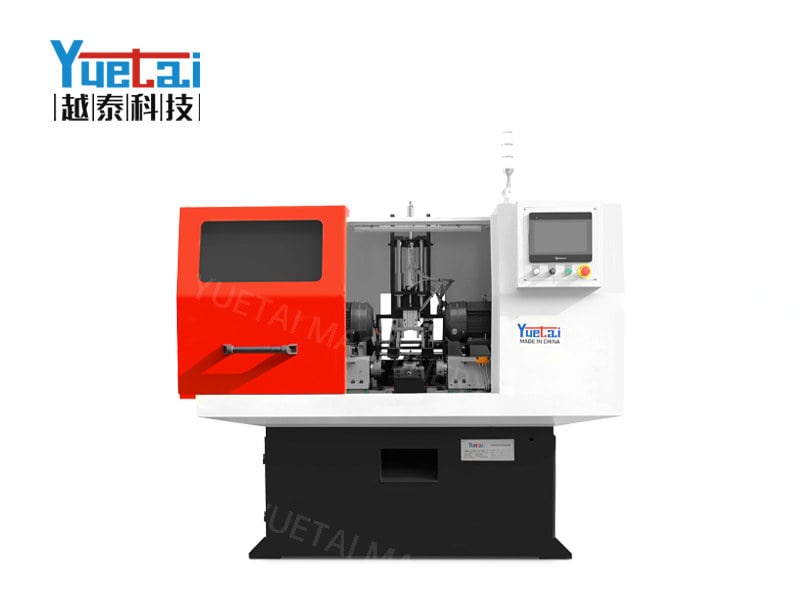

Double Head Chamfering Machine

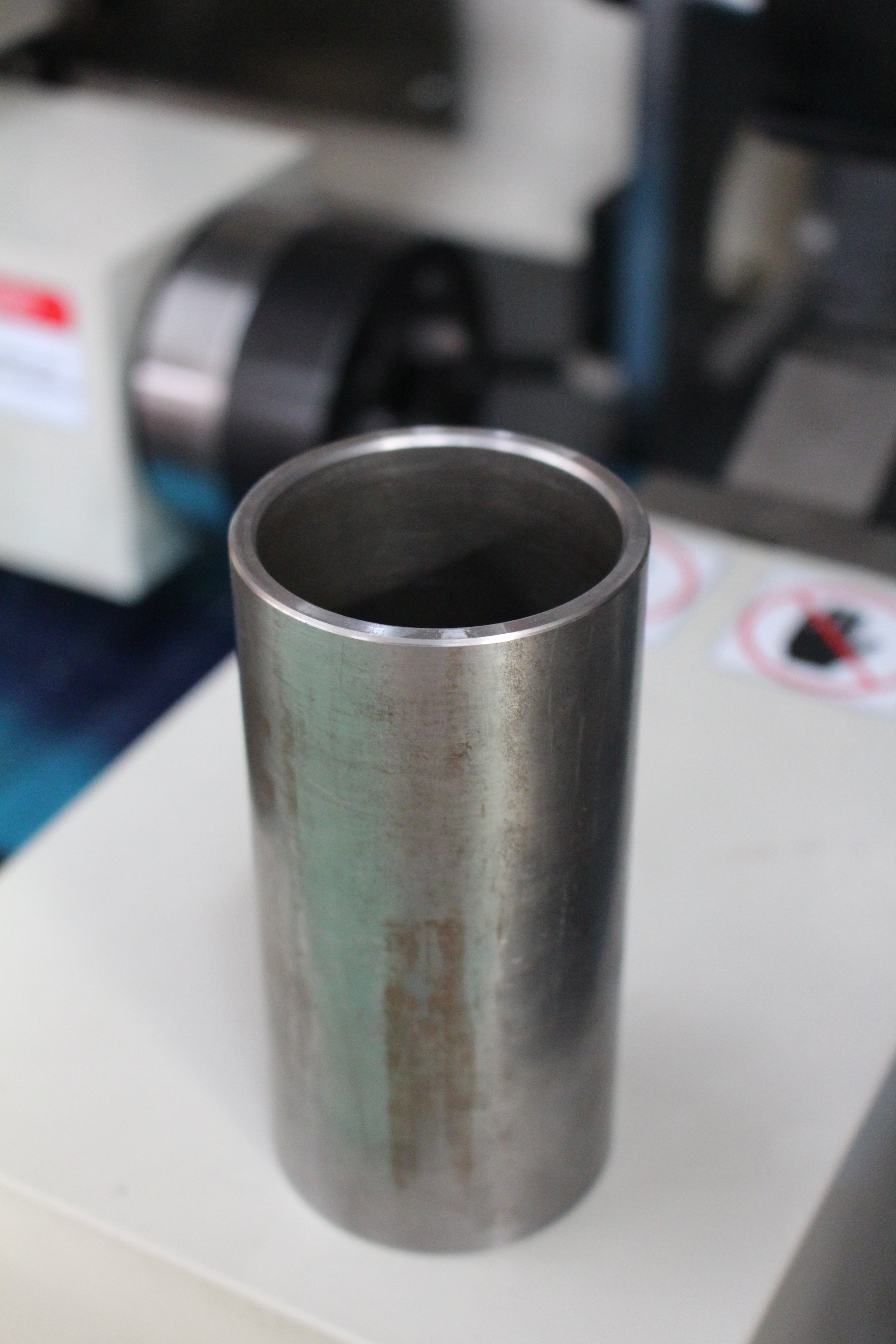

Inside + Outside Chamfering
Facing
Centering

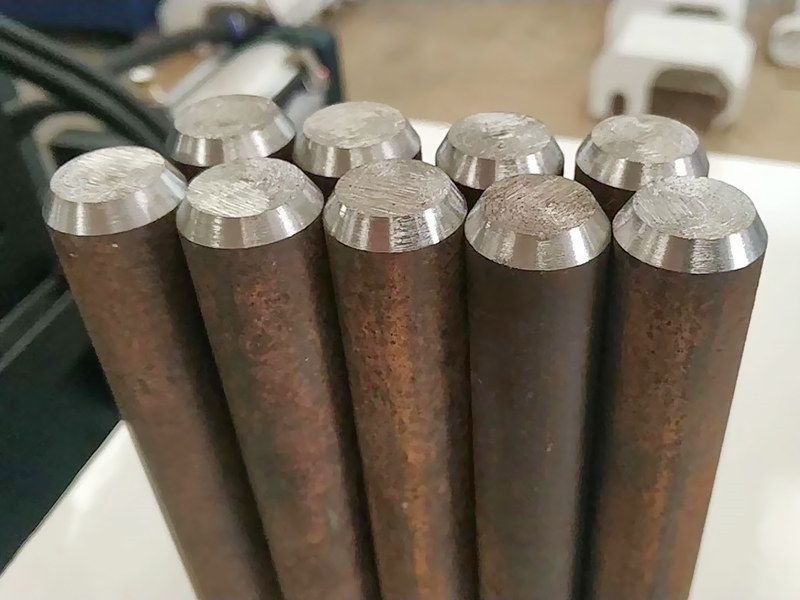

Deep Chamfering
Radius Chamfering
Length Measuring
Double Head Chamfering Machine
Fully automatic chamfering and Length Measuring system, with 2 types of loading magazine:

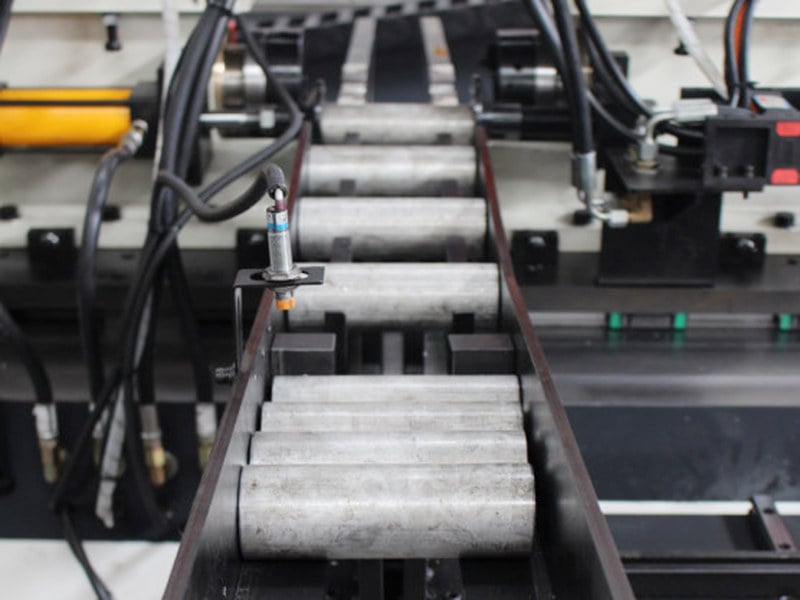

Rack – Sliding Magazine ( Standard )
BTM – Bundle Loading Magazine (Optional )
Double Head Chamfering Machine

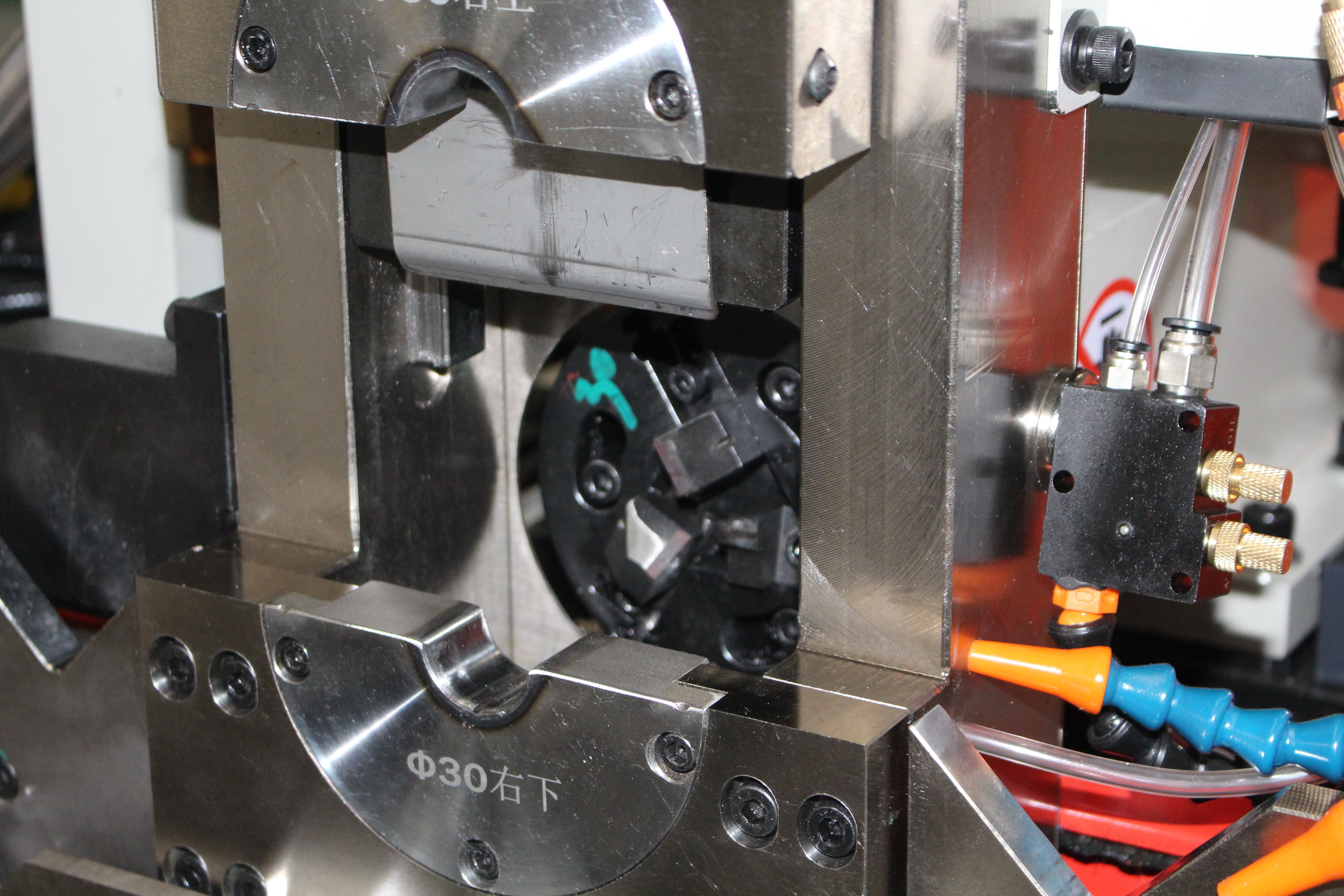

External and internal chamfering facing with length measuring in 1 process for both sides of the tube, with optional radius (round) chamfering

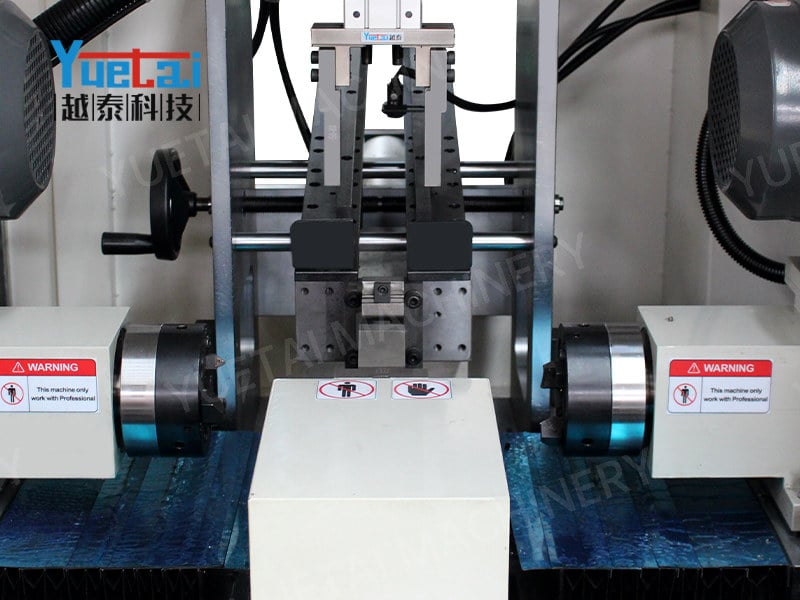

Double Head Chamfering Machine

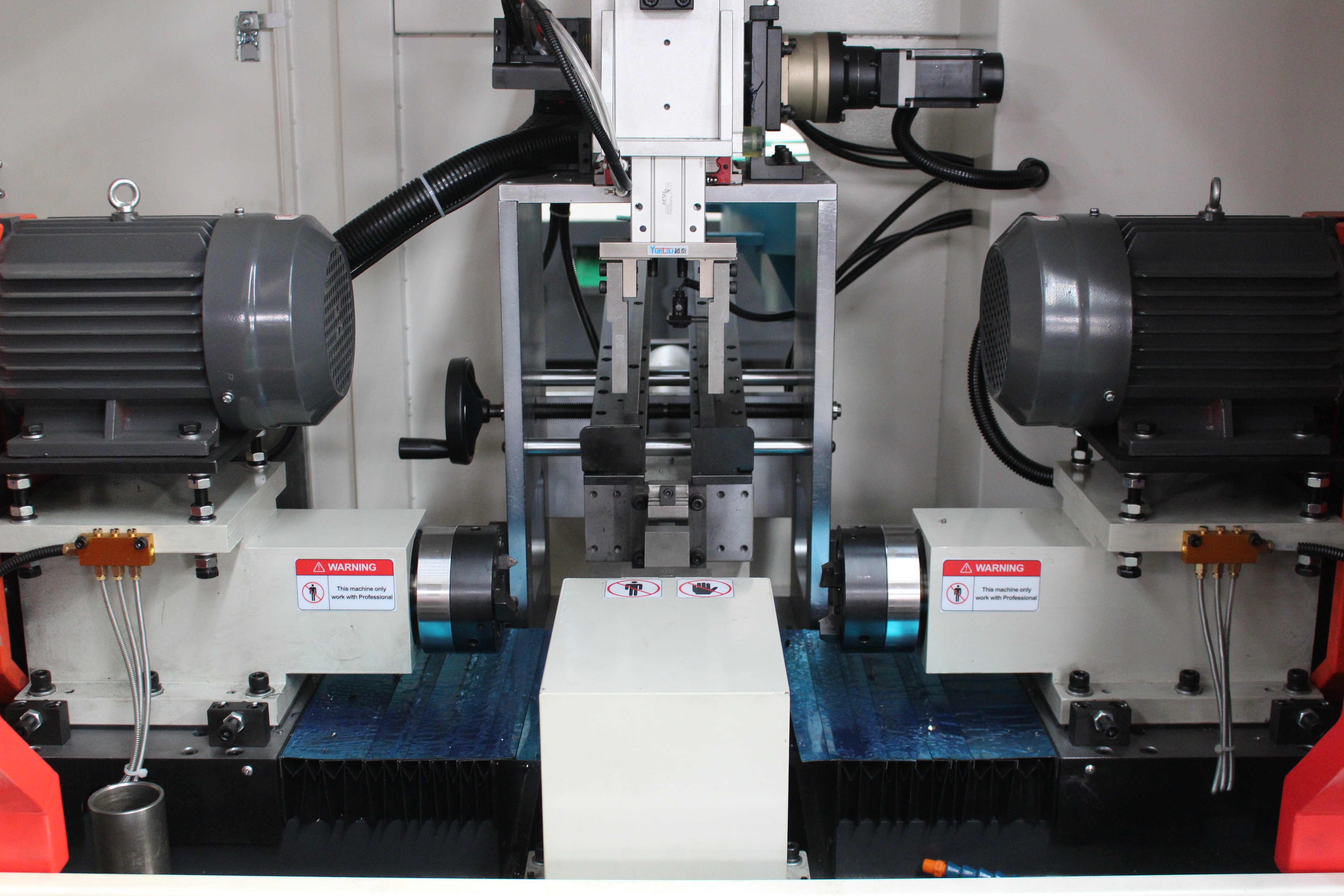

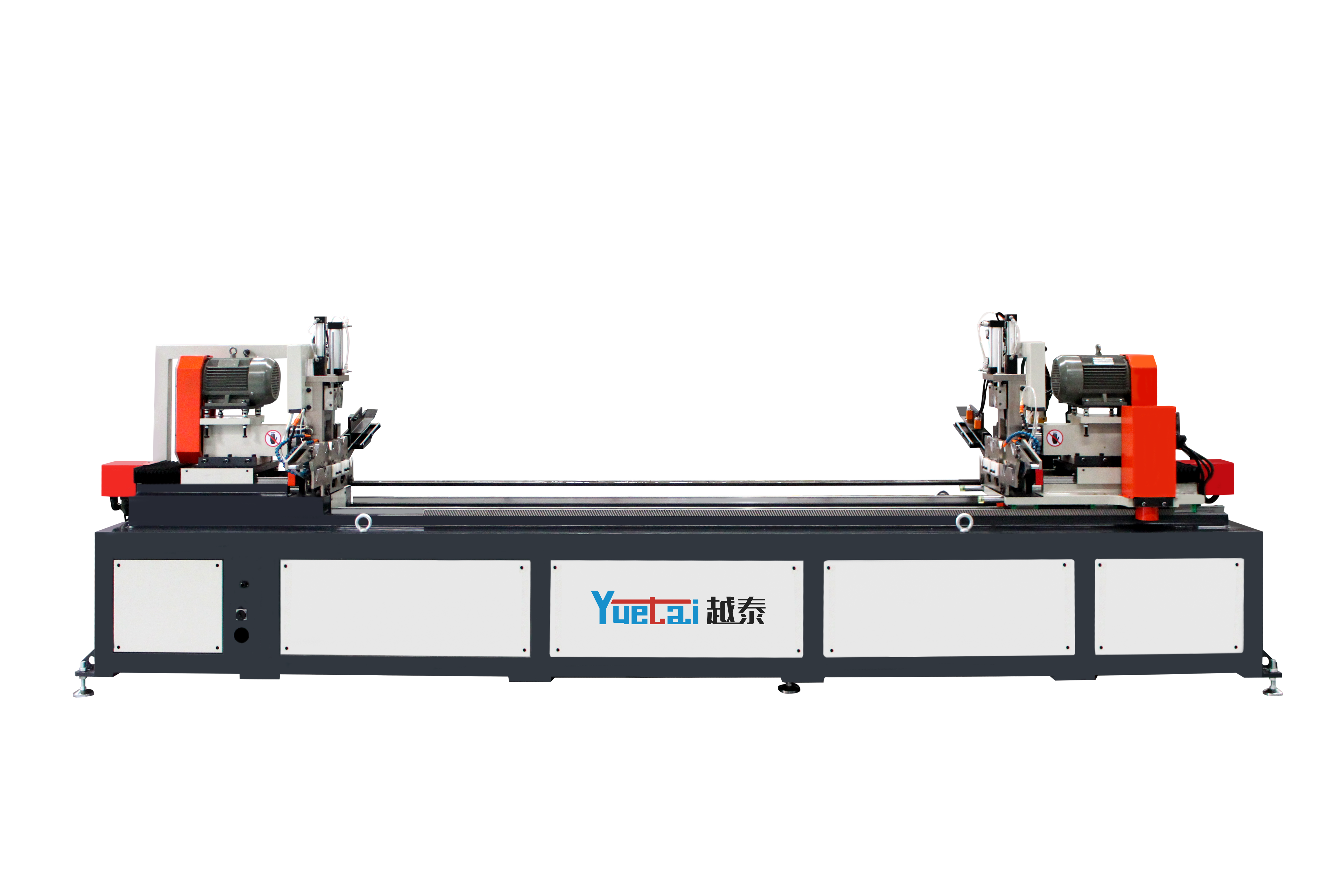

It is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length, and measure their lengths with tolerances as low as +- 0.02 mm
