- Overview
- Recommended Products
| Item | Type | Max.Processing Dimension | Cutting position | Cutting angle |
| 1 | 。 | Φ120 mm*8mm | Straight | 90° |
| 2 | □ | 120mm*120mm*6mm | Straight | 90° |
| 3 | L | 150mm*60mm*10mm | Straight | 90° |
| 4 | . | Φ50mm | Straight | 90° |
| 5 | - | 45mm*45mm | Straight | 90° |
| No. | Item | Description | ||
| Model | YT425CNC-3A | |||

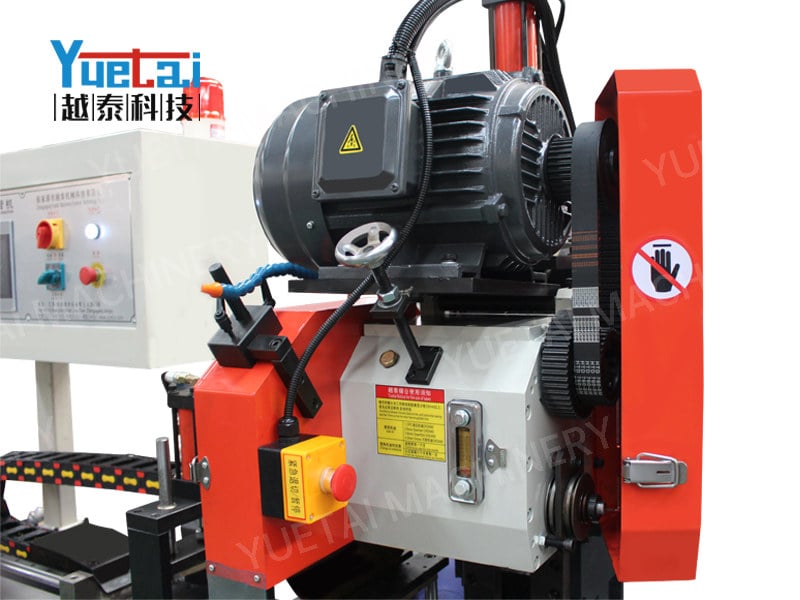

| 1 | Motor power | Standard 3kw/4kw(with bigger motor power) | ||
| 2 | Voltage | 380V 50HZ | ||
| 3 | Motor power for cooling pump | 380v 90w | ||
| 4 | Max.Clamp Degree | 160mm | ||
| 5 | Suitable Blade | Φ300~Φ450mmΦ400mm for standard | ||
| 6 | Sawing Angle | 90° | ||
| 7 | Automatic Feeding Length | 1000mm/1500mm/2000mm | ||
| 8 | Servo Motor | Mitsubishi | ||

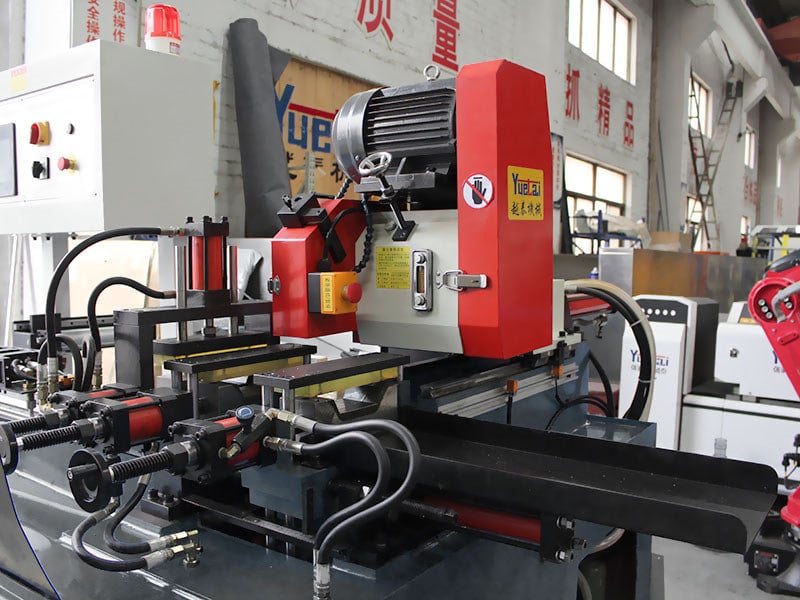

CNC Full Automatic Pipe Cutting Machine

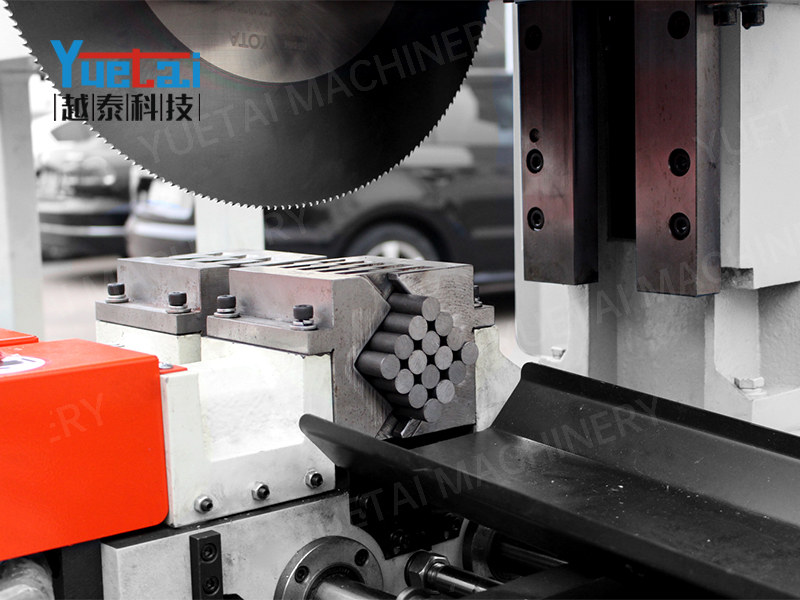

Round Tube

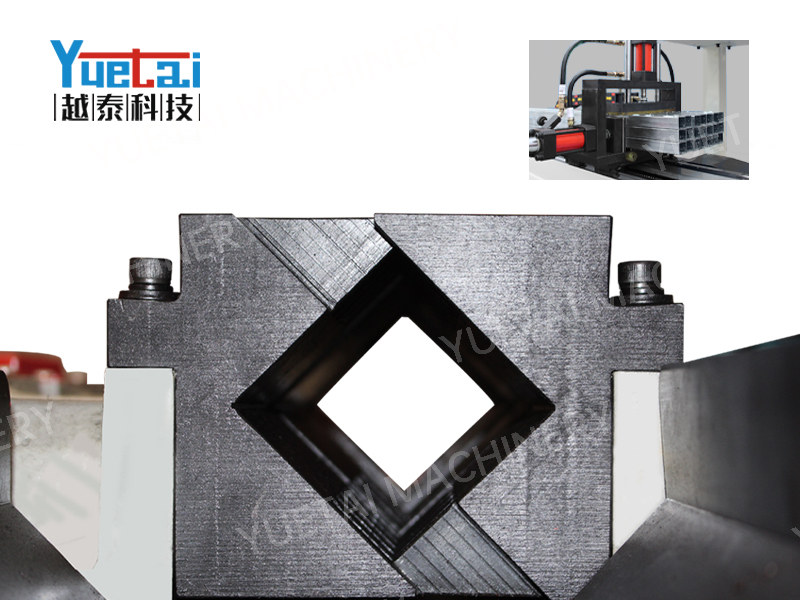

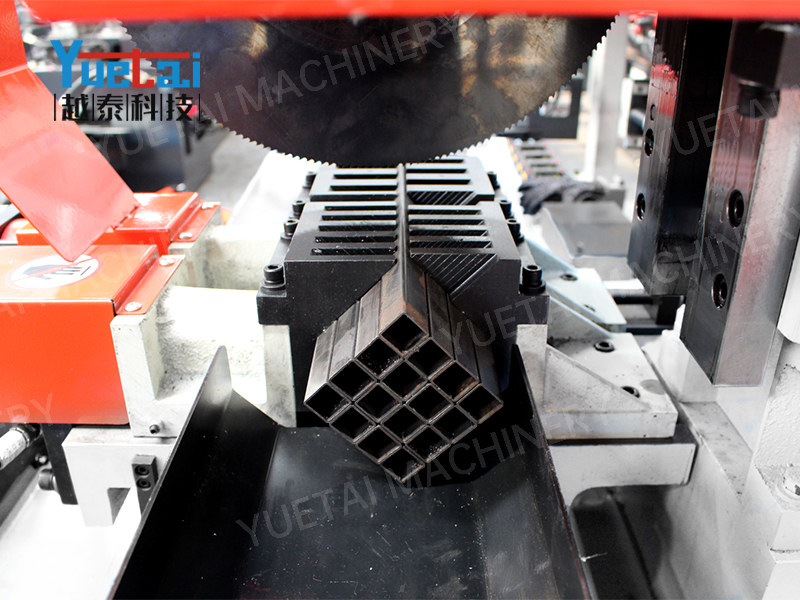

Square Tube
Rectangular Tube
Oval Tubes
L-shaped profiles
C-shaped profiles
Mild Steel, Stainless Steel, and Aluminum materials
CNC Full Automatic Pipe Cutting Machine

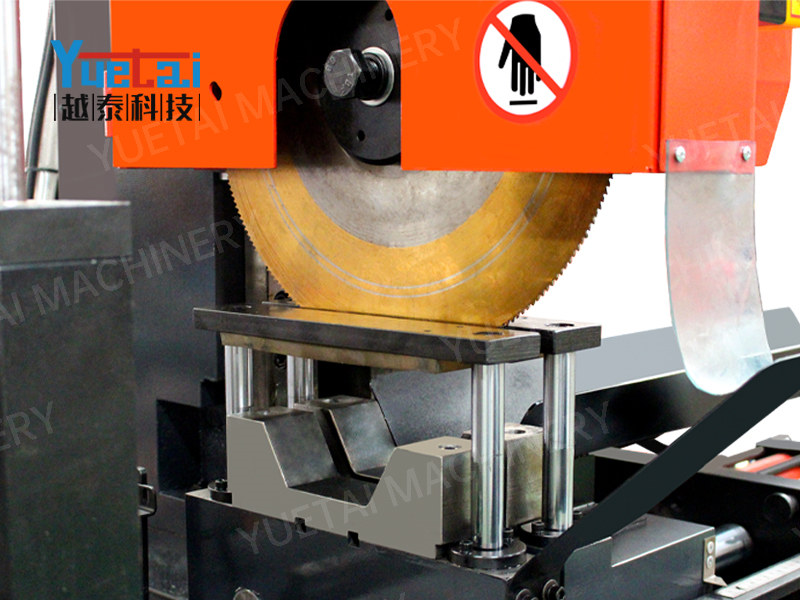

CNC Tube Cutting
Servo Motor Feeding
Touch Screen Control

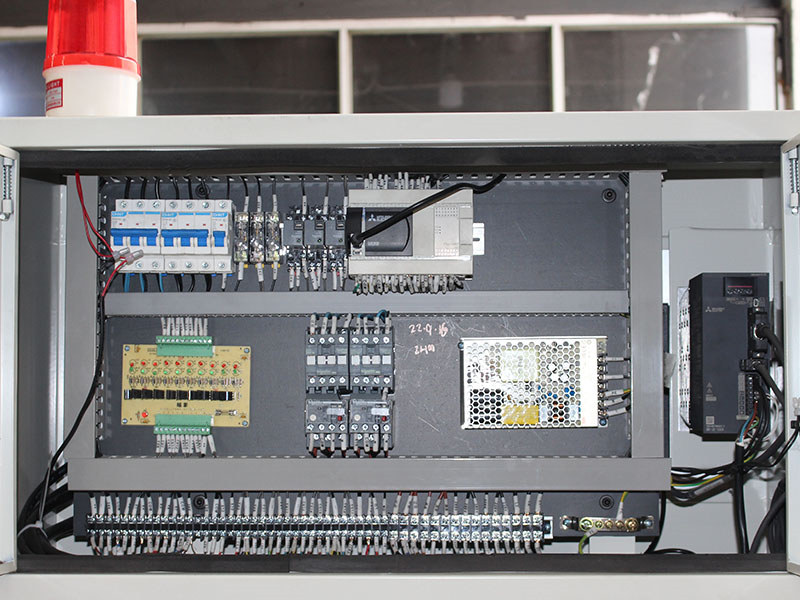

Mitsubishi PLC and Mitsubishi Servo Motor
CNC Full Automatic Pipe Cutting Machine
Intuitive and user-friendly interface with Touch Screen System
Ability to program 5 cutting lengths per bar
Digital counter for automatic operation (Cutting length / Quantity set up / Counter)
CNC Full Automatic Pipe Cutting Machine
Fast Approach Speed
Low Speed during blade entry
High Speed after cutting through the tube's wall
Lowest Speed at re-entry into tube's lower wall
CNC Full Automatic Pipe Cutting Machine
Automatic Tube Bundle Loading
Automatic Material Alignment
Machine in Stock for Quick Delivery Time
It is integrated with Automatic Loading, Feeding, Deburring, Chamfering and End Forming.
