| Main Model | YT-315B | RemarksManual Feed | ||
| Sawing Capacity | 90° | 45° | ||
| □ | 80x80mm | 60x80 mm | ||
| 。 | Φ90 mm | Φ80 mm | ||
| . | Φ30mm | Φ25mm | ||
| - | 35X35mm | 35X35 mm | ||

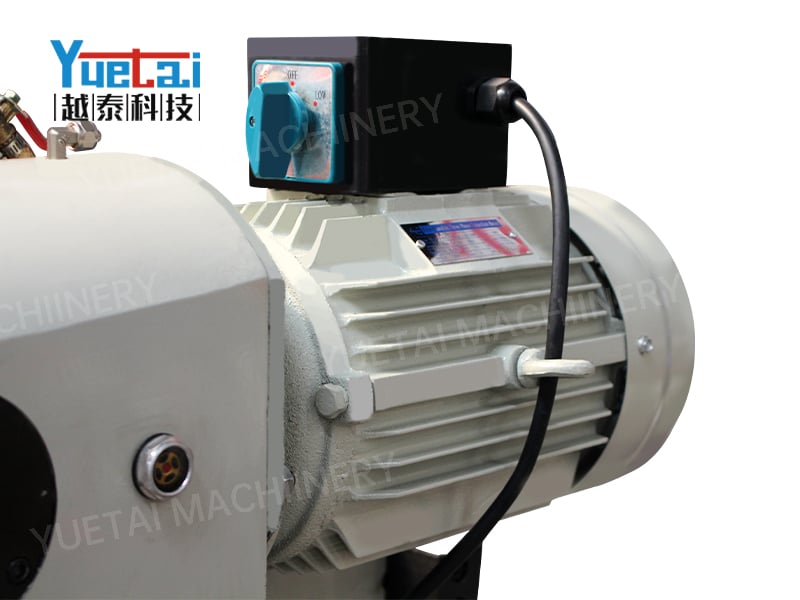

| Motor Power | 2.4/3.0Kw | Auto Clamp | ||
| Rotating Speed | 96/48RPM | Auto Cut | ||
| Max Clamp | Φ100 | |||
| Saw Blade Diameter | Φ250-325 | |||
| Dimension | 500mmx550mmx1700mm | |||
| Weight | 260Kg | |||
Semi Automatic Pneumatic Pipe Cutting Machine
Manual operation.

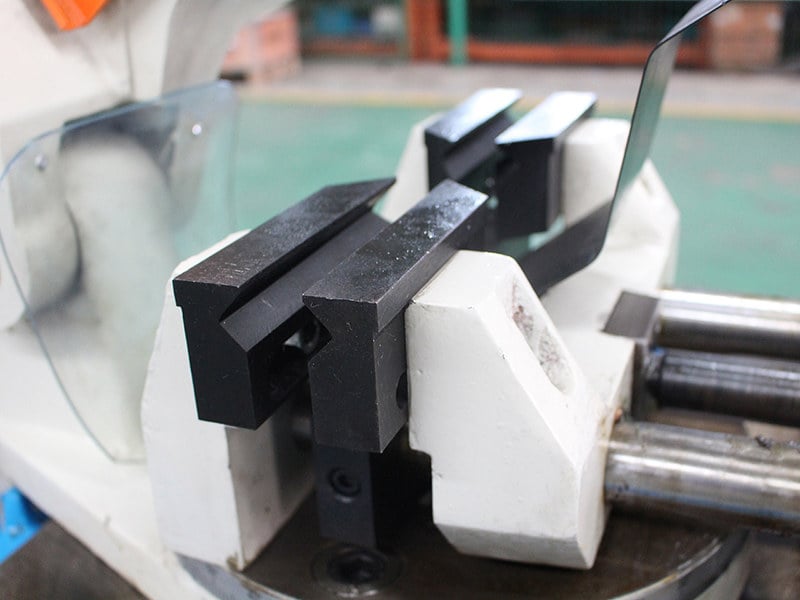

Double vises.
Sawblade HSS Ø250~ Ø275mm,Ø250mm.(standard)
2 Speeds.
220V, single phase, 60 RPM. (optional)
Movable guard. (optional)
Semi Automatic Pneumatic Pipe Cutting Machine
Automatic pneumatic single clamping.
Automatic cutting feed.
Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
2 Speeds.
Movable guard. (optional)
Semi Automatic Pneumatic Pipe Cutting Machine
Semi-automatic operation for clamping and cutting off
Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
Saw blade, movable safety guard, cutting fluid.
Semi Automatic Pneumatic Pipe Cutting Machine
Motor, switch, complete cooling system, adjustable stop, service tools.

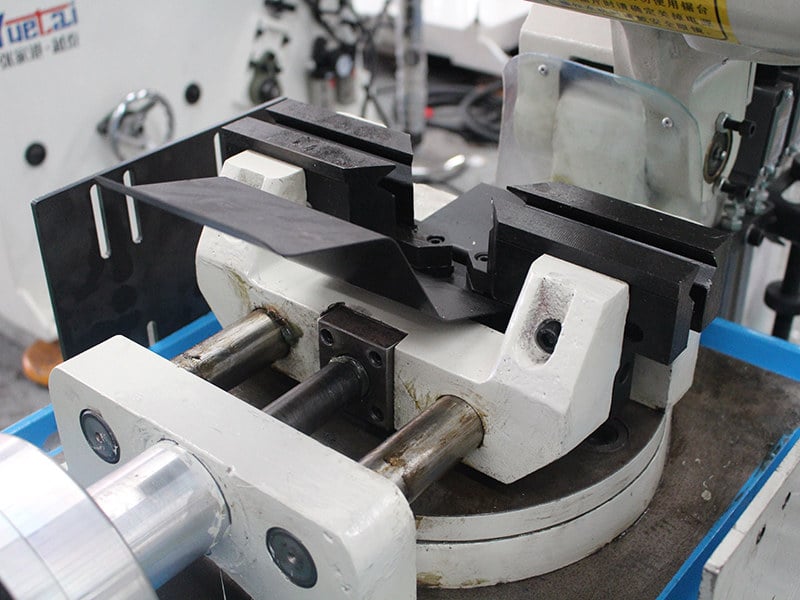

Automatic pneumatic double clamping
Manual feed materials

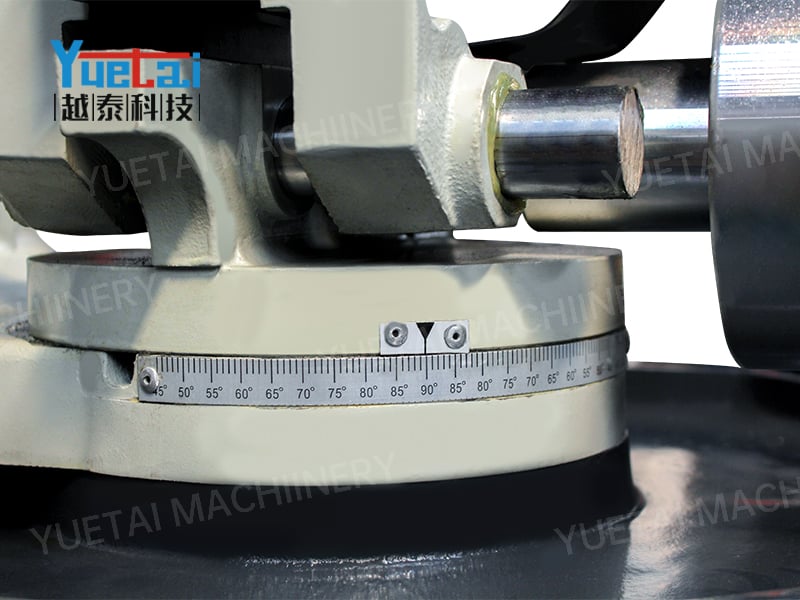

Cutting degree 45°-90°
