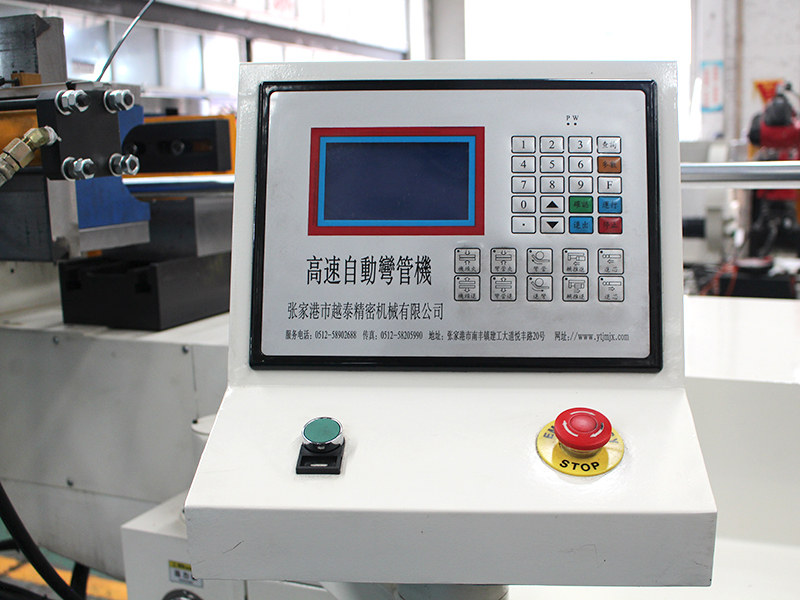

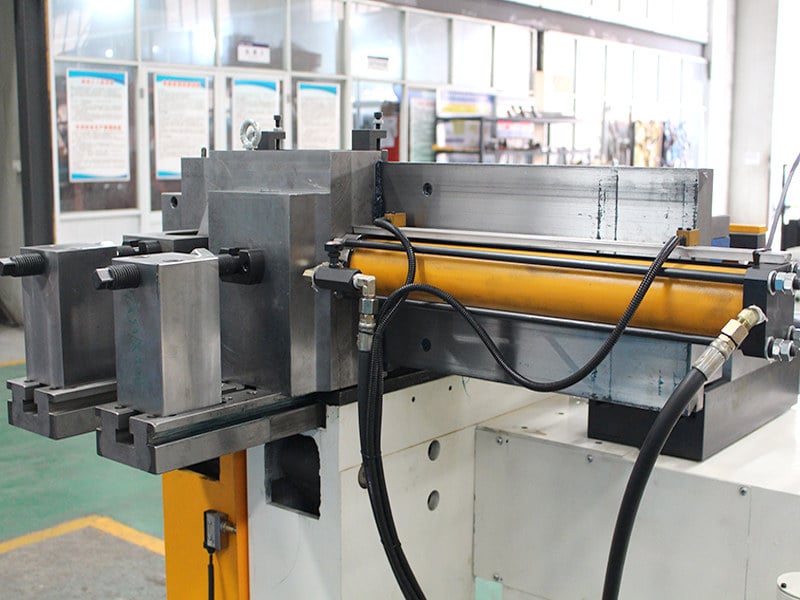

Technical Specifications	Unit	18	25	38	50	65	75	80	90	100	115	130	168	219	273
Max Bending Capacity – Carbon Steel (σs = 400 MPa)	mm	φ18*1.6	φ25*2	φ38*2	φ50*2.0	φ65*2.5	φ75*2.5	φ80*2.5	φ89*2.5	φ100*2.5	φ114*5	φ130*5	φ168*15	φ219*16	φ270*20
Max Bending Capacity – Stainless Steel (σs = 600 MPa)	mm	φ15*1	φ20*1.0	φ32*1.2	φ42*1.2	φ52*1.5	φ62*2	φ65*2	φ70*1.5	φ80*1.5	φ102*2	φ114*2.5	φ152*4	φ190*10	φ252*10
Min Centerline Bending Radius (CLR)	mm	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<	1.5D<
Max Capacity – Square / Rectangular Tubes	mm	12*1.2	16*1.5	28*1.5	40*1.5	45*2	50*2	50*2.5	60*2.5	65*2.5	90*2.5	95*3	110*5	180*10	200*12
Max Bending Diameter (Customizable with Push Bending Assist)	mm	φ10	φ20	φ34	φ48	φ52	φ62	φ74	φ89	φ98	φ114	φ114	φ140	φ190	φ250
Bending Radius Range (Min – Max CLR)	mm	10-80	10-140	15-150	20-180	30-200	35-230	40-250	40-270	40-285	50-350	60-400	90-550	120-800	130-1000
Max Bending Angle	degree	190	190	190	190	190	190	190	190	190	190	190	190	190	190
Max Center Distance Between Two Bends (R1 – R2)	mm	30	40	65	65	75	85	100	110	120	130	130	145	170	180
Max Feed Length with Mandrel	mm	3000	3000	3000	3200	3500	4000	4700	5000	5300	5500	5500	5800	6500	7000
Max Straight Length from Clamp to End (For Easy Loading)	mm	2000	2000	2500	2500	2500	2800	2900	3000	3500	4000	4000	4500	4800	5200
Table Height (Center of Bending Die to Floor)	mm	1100	1100	1100	1150	1215	1215	1200	1305	1115	1450	1450	1470	1650	1800
Bending Die Center Height	mm	22	30	38	38	50	65	68	68	75	90	90	150	165	185
Max Bending Speed (BOD – Bend on Distance)	deg/sec	220	220	160	105	100	75	65	58	47	40	25	20	10	6
Bending Accuracy (± mm or ±°)	degree	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.1	±0.1	±0.15	±0.15	±0.2
Max Feeding Speed (DBB – Distance Between Bends)	mm/sec	2000	2000	1400	1400	420	400	360	360	360	260	260	240	230	215
Feeding Accuracy (± mm)	mm	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.1	±0.1	±0.1
Max Rotation Speed (POB – Plane of Bend)	deg/sec	300	300	300	200	200	200	240	220	200	170	170	140	100	80
Rotation Accuracy (±°)	mm	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.15	±0.15	±0.2
Hydraulic Motor Power	kw	2.2	4	4	5	7.5	7.5	15	15	15	22	22	30	45+11	55+11
Machine Width	mm	760	760	1150	1300	1850	1450	2100	2180	2300	1700	2000	2400	3500	3800
Machine Height	mm	1300	1300	1450	1450	1780	1400	1770	1800	2170	2100	2100	2150	2500	2700
Machine Length	mm	3500	4050	4900	5350	5800	6200	6290	6850	7800	7000	9000	9300	13500	15000
Machine Weight	kg	1100	1500	3000	3500	5900	6000	6700	7900	10000	12000	13000	16000	32000	50000
